Color Sorter | Electronic Sorting

Cimbria SEA Optical Color Sorters

Tell Me More
Nexeed Equipment Solutions
Nexeed has been providing grain processing equipment & seed processing equipment solutions since 1993 across Canada.

What is an Optical Color Sorter?

Optical Sorters are among the newest technology in seed and grain processing. This equipment separates particles based on color and is often found at or near the end of the processing line, after mechanical separations, to remove impurities of similar size and density.

Cimbria SEA offers a complete range of optical sorters. Machines are available from one to seven chutes wide in both the True and Chromex models. Technology range includes a simple monochromatic version, to bichromatic, NIR, InGaAs, RGB Full Color, and now Shape Sizing in the SEA Chromex.

Colour sorting is necessary nowadays to ensure the best purity of bulk products, as well as ensuring that the strictest food hygiene and health requirements of end-products are met.

Nexeed Color Sorter Award

How do color sorters work?

Utilizing top of the line Full-Colour RGB cameras, with optical resolution of 0.06 mm the SEA CHROMEX is able to determine and sort the smallest differences in colour or shade for your processing system. The combination of Full-Colour vision system with NIR and InGaAs technologies makes the SEA CHROMEX the most advanced vision-based sorter on market, representing the fruits of almost 50 years’ experience of colour sorting technology.

Excellent for all food and industrial processing systems, SEA CHROMEX reaps the benefits of the new EXAGON interface that makes setting and adjustment extremely simple.

Cimbria Color Sorter at Nexeed Canada

Real World Grain & Seed Cleaning Solutions

Cimbria Color Sorters in Action!

Cimbria Optical Color Sorters

Cimbria SEA Color Sorter Features

  • European craftsmanship, designed and built in Imola, Italy
  • Windows based software with 15 inch touchscreen
  • Up to 16 different types of defects can be detected and removed in one pass
  • HSI system to display seed images, allowing the user easy set-up for rejecting based on color, defect size, and Shape-Sizing – separation of elements based on different geometric characteristics
  • Internet connectivity – allowing technician to work directly within the software from a remote location
  • Pressurized and air conditioned optical boxes preventing dust from entry to sensitive electronics
  • Local Service – Technical assistance available, based in Canada

Cimbria SEA CHROMEX

Colour sorting is necessary nowadays to ensure the best purity of bulk products, as well as ensuring that the strictest food hygiene and health requirements of end-products are met.

Utilizing top of the line Full-Colour RGB cameras, with optical resolution of 0.06 mm the SEA CHROMEX is able to determine and sort the smallest differences in colour or shade for your processing system. The combination of Full-Colour vision system with NIR and InGaAs technologies makes the SEA CHROMEX the most advanced vision-based sorter on market, representing the fruits of almost 50 years’ experience of colour sorting technology.

Excellent for all food and industrial processing systems, SEA CHROMEX reaps the benefits of the new EXAGON interface that makes setting and adjustment extremely simple.

Cimbria SEA Chromex Calibration Secreen

The EXAGON User Interface (UI)

SEA CHROMEX comes as the upgraded version of the SEA CHROME series, recognized on the global market as the bestperforming sorting machine using Full-Colour technology in combination with NIR and InGaAs cameras.

SEA CHROMEX provides the highest yield and quality. In addition, thanks to the new EXAGON graphic interface, setting and adjustment are now even simpler, faster and more intuitive.

The new graphical user interface improves the user experience, with more appealing graphics and simplified screens to allo even novice users to be able to set dedicated programs in a straightforward manner.

EXAGON allows the use of the same programs on multiple SEA CHROMEX machines, whilst enabling a single database and the rapid creation of efficient programs.

EXAGON offers different levels of difficulty accessible by password, depending on the operator’s preparation.

EXAGON allows data to be remotely retrieved from the color sorter on company networks, with the capability to create a database detailing production aspects such as the number of rejects. EXAGON has a customizable home page with widgets that the customer can change at any time according to needs.

Cimbria Exagon Cimbria Exagon screen

SEA CHROMEX Applications

What does CHROMEX Sort?

Color Sorter Applications

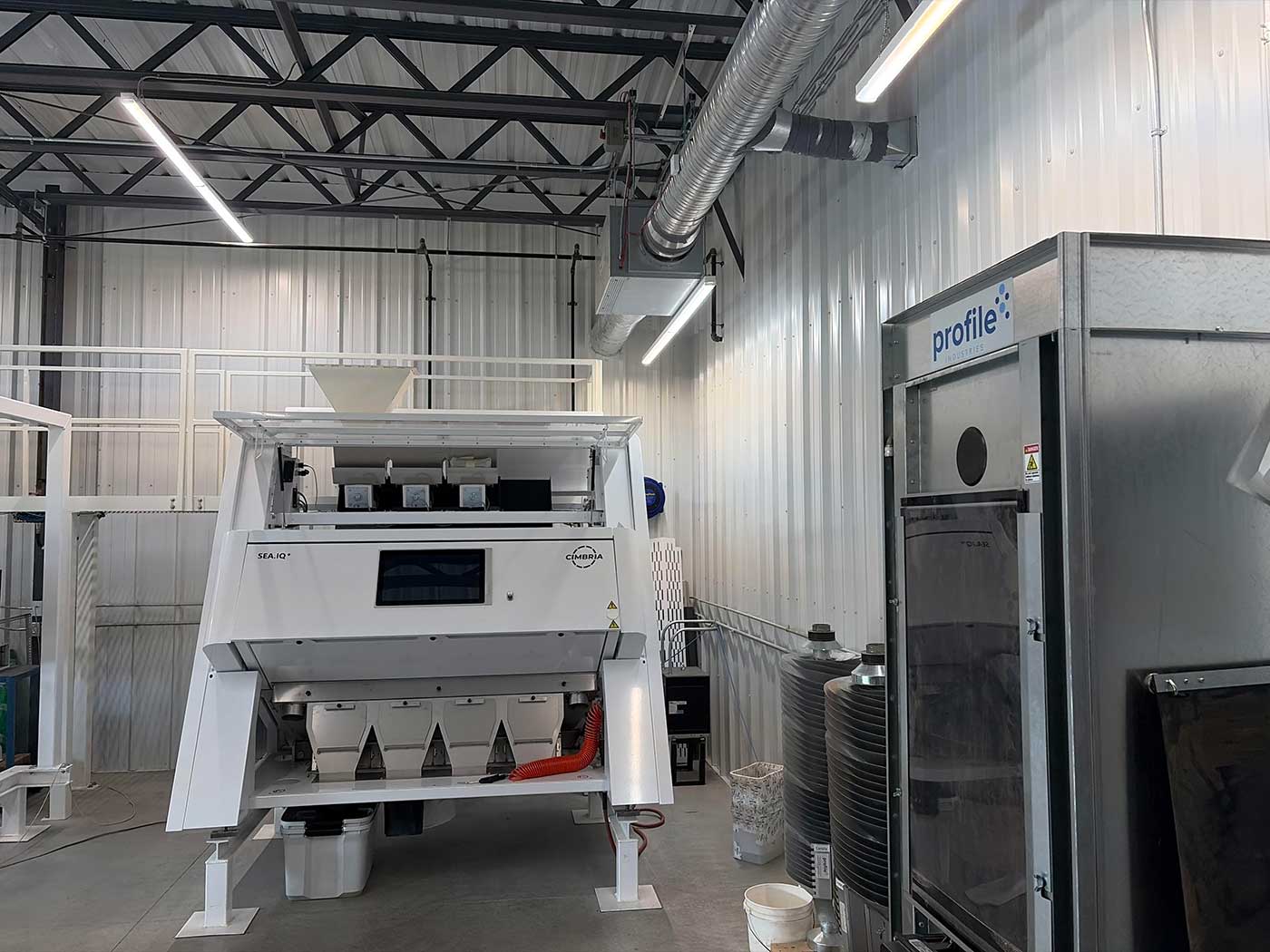

Live Chromex Demo at Nexeed!

Yes, we have a full Cimbria SEA Chromex and a full SEA TRUE setup in our office to show you exactly how this machine can work for you.

Color Sorter Videos & Animations

Nexeed Equipment Solutions
Nexeed supports & services all the equipment we sell. We are a full-solution provider.

Additional Nexeed Equipment

Nexeed equipment solutions is offering CIMBRIA Delta air screen cleaners, stoner, indent and gravity separators as well as CIMBRIA SEA optical color sorters for seed, grain, and food processing. Seed Cleaning Equipment, Seed Processing Equipment, Grain Cleaning Equipment and Grain Processing Equipment.
