What are Cimbria Pipes and Valves?

Cimbria’s product range of piping, valves and shutter covers square piping for the gravity flow of grain & other free-flowing products.

Square spouting provides higher capacity (in relation to cross section). Square spouting also means less friction & requires shallower angles compared to round ducts which, in turn, means lower built-in height.

The grain piping product range also includes various types of valves for diverting the flow of material, a number of shutters, bends, junction boxes, grain brakes and various types of wear-liners.

Features

Q-Spouts

The type denomination refers to the square cross section of the spout, e.g. a Q16 has an external dimension of 160 mm x 160 mm.
Q16, Q20 and Q24 with flange and clip assembly.
Q30, Q40 and Q55 with flange assembly.
Standard and modular production ranging from Q16 to Q55 for up to 1,500 t/h wheat.

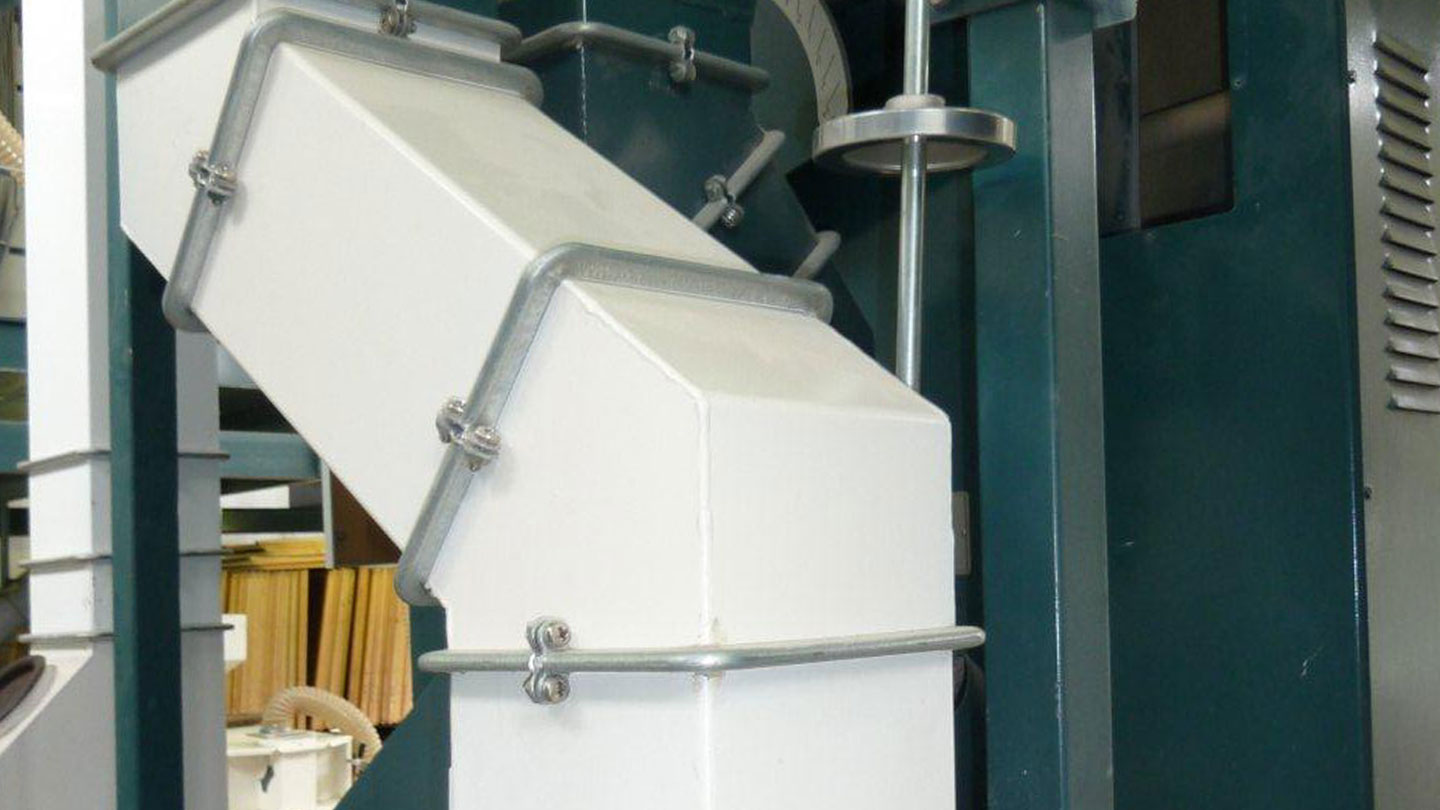

Piping/chutes in modular design. PEHD or HARDOX wear liner can be added where needed.
Bends are located in the piping system where falling grain will attain high speed, as this will result in unacceptable product damage and/or wear of the piping.
Standard modular design ranging from 7° to 52°.
Grain speed reducers.

Two-Way Valves

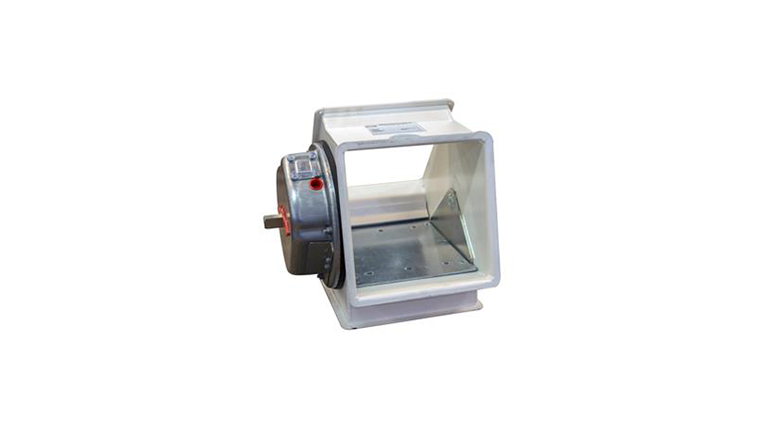

TWO-WAY VALVES TYPE LM & LN FOR DIVERTING GRAIN FLOW

Motor/electrical actuator operated.
Manually operated.
Pneumatically operated.

Shutters

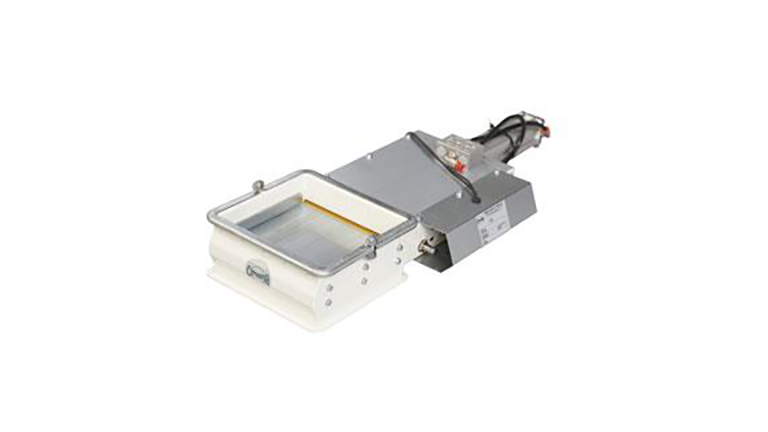

INSTALLED INTO GRAIN SPOUT TO REGULATE OR CUT OFF FLOW

Motor/electrical actuator operated.
Manually operated.
Pneumatically operated.

Rotary Valves

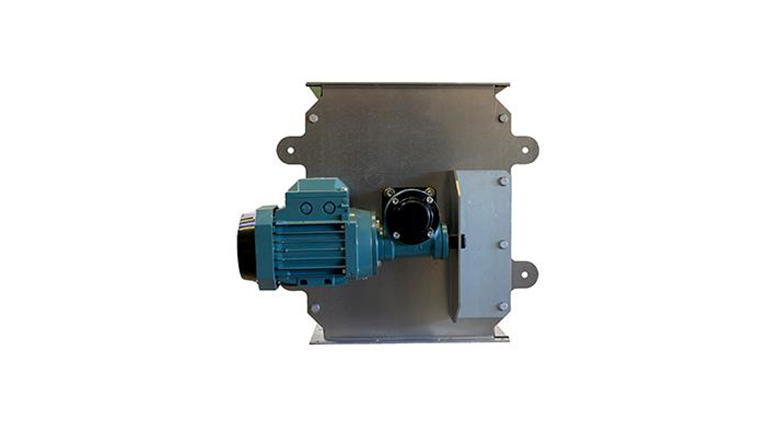

The air-lock valve is used for discharge of dust and other separated particles from systems working with vacuum or pressure. It is dustproof and is used as a pressure block between a cyclone and a dust collecting bag.
